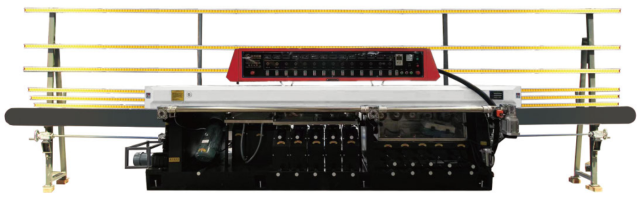

MB5531-14 Full-Automatic Multi-Functional Edging Machine
Features
Use diameter 20cm grinding wheels from No.1 to No.5 on this machine,No.6 to No.13 use water grinding wheel,configured with worm buckle joint,electric control the motor’s front and back move, up and down lifting, This machine mainly used for processing different size and thickness of verious stones, which can grind all kinds of stone’s large&samll Round shape edge、french edge、45°chamfering of straight line bottom edge、slotting、OG edge、hitom angle、back cut and other irregular shape edge. Can make rough grinding、fine grinding and polishing in one time. The effect after processing with high brightness and no drawing, the maximum processing speed is 5M/min. The stone’s processing enter speed and quantity can be adjust. this machine with high precision、quick efficiency、simple operation、convenient maintenance and eliminates the defacts of manual processing.
Technical Parameters
Working Speed: 0.8m-5m/min
The minimum processing size of stone: 10mm-60mm*60mm
Total power: 45KW
Body Weight: 3700KG
Overall Dimensions: 7300mm*1100mm*2000mm
